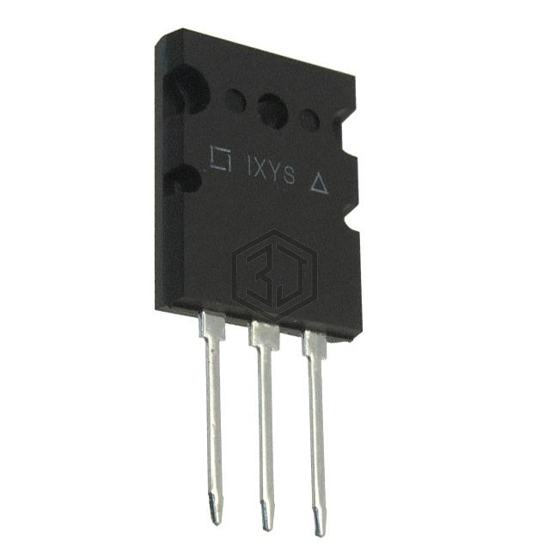

IGBT 1200V 188A 1150W TO264
IXYK100N120C3 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1200V 188A 1150W TO264. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-264-3, TO-264AA, current - collector (ic) (max) 188 A.
In Stock: 6
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 188 A |
| Current - Collector Pulsed (Icm) | 490 A |
| Vce(on) (Max) @ Vge, Ic | 3.5V @ 15V, 100A |
| Power - Max | 1150 W |
| Switching Energy | 6.5mJ (on), 2.9mJ (off) |
| Input Type | Standard |
| Gate Charge | 270 nC |
| Td (on/off) @ 25°C | 32ns/123ns |
| Test Condition | 600V, 100A, 1Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-264-3, TO-264AA |
| Supplier Device Package | TO-264 (IXYK) |
Submit your RFQ for IXYK100N120C3 and get a quote within 24 hours.
