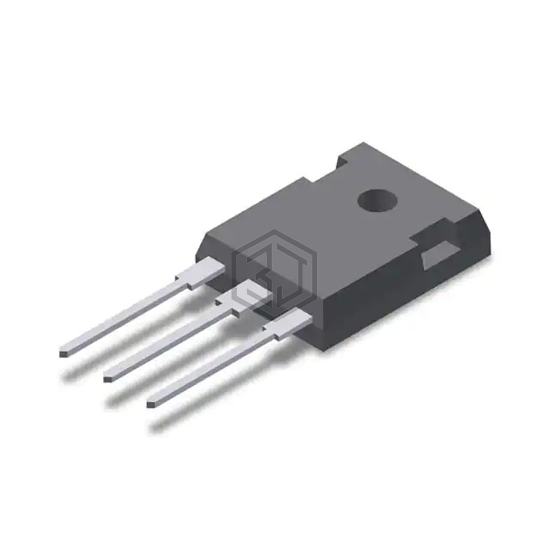

IGBT 650V 90A X5 XPT TO-247
IXYH90N65A5 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 650V 90A X5 XPT TO-247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 220 A.
In Stock: 9,964
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | PT |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector (Ic) (Max) | 220 A |
| Current - Collector Pulsed (Icm) | 600 A |
| Vce(on) (Max) @ Vge, Ic | 1.35V @ 15V, 60A |
| Power - Max | 650 W |
| Switching Energy | 1.3mJ (on), 3.4mJ (off) |
| Input Type | Standard |
| Gate Charge | 260 nC |
| Td (on/off) @ 25°C | 40ns/420ns |
| Test Condition | 400V, 50A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247 (IXTH) |
Submit your RFQ for IXYH90N65A5 and get a quote within 24 hours.
