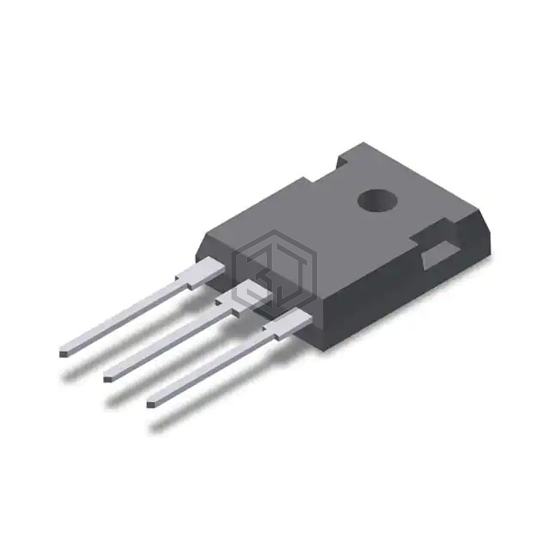

IGBT 1200V 85A GEN4 XPT TO247
IXYH85N120C4 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1200V 85A GEN4 XPT TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 240 A.
In Stock: 3,210
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 240 A |
| Current - Collector Pulsed (Icm) | 420 A |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 85A |
| Power - Max | 1150 W |
| Switching Energy | 4.3mJ (on), 2mJ (off) |
| Input Type | Standard |
| Gate Charge | 192 nC |
| Td (on/off) @ 25°C | 35ns/280ns |
| Test Condition | 600V, 50A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | 60 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247 (IXTH) |
Submit your RFQ for IXYH85N120C4 and get a quote within 24 hours.
