IGBT

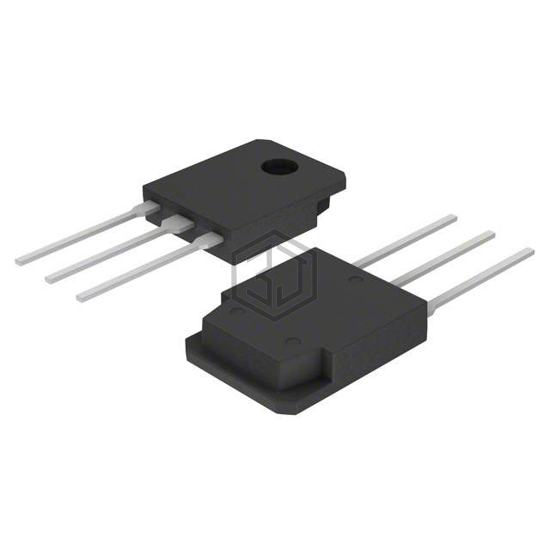

IXYH50N65C3D1 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 132 A.
In Stock: 1,408
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector (Ic) (Max) | 132 A |
| Current - Collector Pulsed (Icm) | 250 A |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 36A |
| Power - Max | 600 W |
| Switching Energy | 800µJ (on), 800µJ (off) |
| Input Type | Standard |
| Gate Charge | 86 nC |
| Td (on/off) @ 25°C | 20ns/90ns |
| Test Condition | 400V, 36A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | 36 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247 (IXTH) |
Submit your RFQ for IXYH50N65C3D1 and get a quote within 24 hours.
