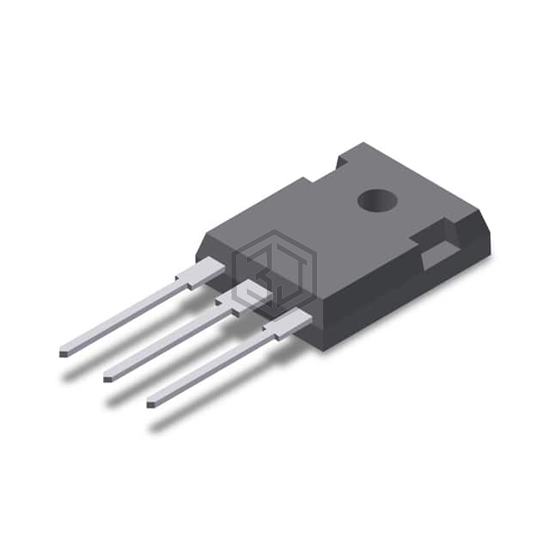

IGBT 1200V 40A GENX4 XPT TO-247
IXYH40N120A4 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1200V 40A GENX4 XPT TO-247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 140 A.
In Stock: 8,259
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | PT |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 140 A |
| Current - Collector Pulsed (Icm) | 275 A |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 32A |
| Power - Max | 600 W |
| Switching Energy | 2.3mJ (on), 3.75mJ (off) |
| Input Type | Standard |
| Gate Charge | 90 nC |
| Td (on/off) @ 25°C | 22ns/204ns |
| Test Condition | 600V, 32A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247 (IXYH) |
Submit your RFQ for IXYH40N120A4 and get a quote within 24 hours.
