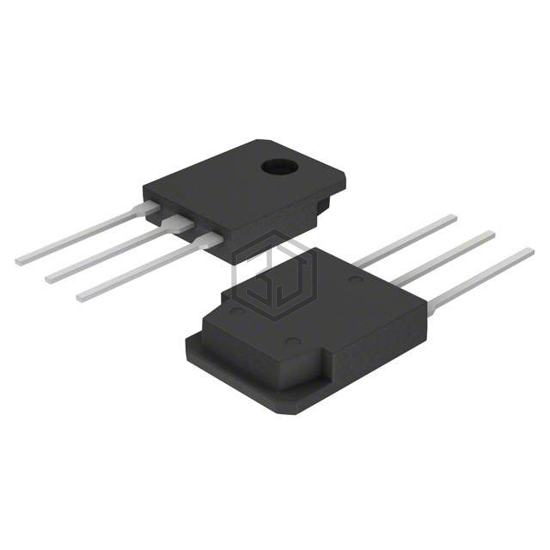

IGBT 1.7KV 58A TO247-3
IXYH24N170C is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1.7KV 58A TO247-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 58 A.
In Stock: 297
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V |
| Current - Collector (Ic) (Max) | 58 A |
| Current - Collector Pulsed (Icm) | 145 A |
| Vce(on) (Max) @ Vge, Ic | 3.8V @ 15V, 20A |
| Power - Max | 500 W |
| Switching Energy | 4.9mJ (on), 1.95mJ (off) |
| Input Type | Standard |
| Gate Charge | 96 nC |
| Td (on/off) @ 25°C | 12ns/160ns |
| Test Condition | 960V, 30A, 15Ohm, 15V |
| Reverse Recovery Time (trr) | 30 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247 (IXYH) |
