IGBT 1.7KV 36A TO247

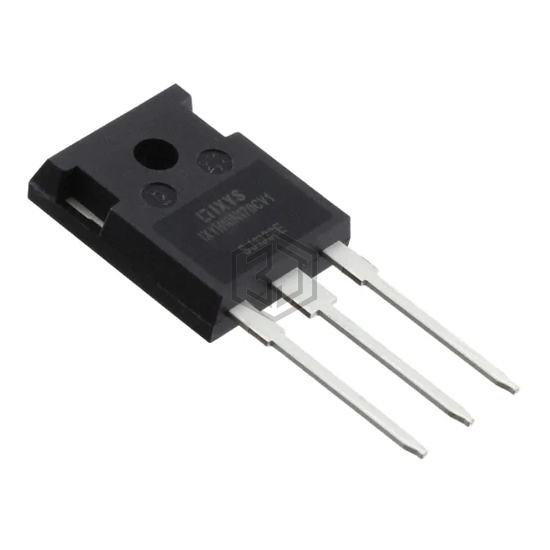

IXYH10N170CV1 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1.7KV 36A TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 36 A.
In Stock: 1,678
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V |
| Current - Collector (Ic) (Max) | 36 A |
| Current - Collector Pulsed (Icm) | 84 A |
| Vce(on) (Max) @ Vge, Ic | 3.8V @ 15V, 10A |
| Power - Max | 280 W |
| Switching Energy | 1.4mJ (on), 700µJ (off) |
| Input Type | Standard |
| Gate Charge | 46 nC |
| Td (on/off) @ 25°C | 14ns/130ns |
| Test Condition | 850V, 10A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 160 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247 (IXYH) |
Submit your RFQ for IXYH10N170CV1 and get a quote within 24 hours.
