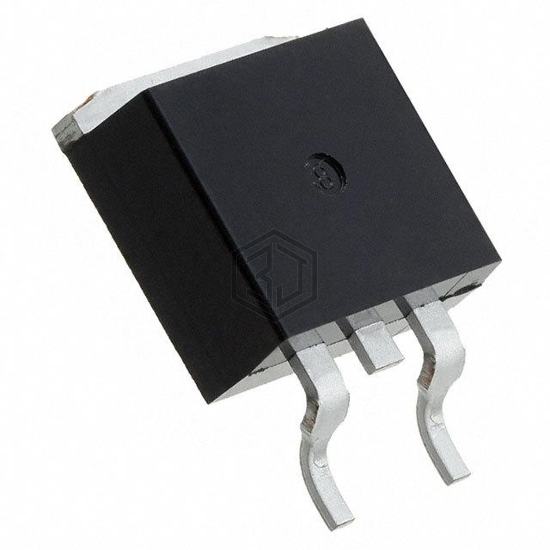

IGBT 900V 20A 125W C3 TO-263AA
IXYA8N90C3D1 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 900V 20A 125W C3 TO-263AA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB, current - collector (ic) (max) 20 A.
In Stock: 1,461
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 900 V |
| Current - Collector (Ic) (Max) | 20 A |
| Current - Collector Pulsed (Icm) | 48 A |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 8A |
| Power - Max | 125 W |
| Switching Energy | 460µJ (on), 180µJ (off) |
| Input Type | Standard |
| Gate Charge | 13.3 nC |
| Td (on/off) @ 25°C | 16ns/40ns |
| Test Condition | 450V, 8A, 30Ohm, 15V |
| Reverse Recovery Time (trr) | 114 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263AA |
Submit your RFQ for IXYA8N90C3D1 and get a quote within 24 hours.
