IGBT

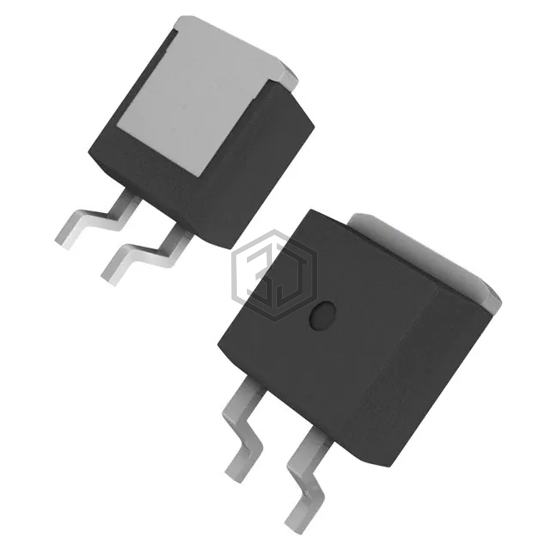

IXYA20N65C3 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB, current - collector (ic) (max) 20 A.
In Stock: 7,640
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector (Ic) (Max) | 20 A |
| Current - Collector Pulsed (Icm) | 105 A |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 20A |
| Power - Max | 230 W |
| Switching Energy | 430µJ (on), 650µJ (off) |
| Input Type | Standard |
| Gate Charge | 30 nC |
| Td (on/off) @ 25°C | 19ns/80ns |
| Test Condition | 400V, 20A, 20Ohm, 15V |
| Reverse Recovery Time (trr) | 34 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263AA |
Submit your RFQ for IXYA20N65C3 and get a quote within 24 hours.
