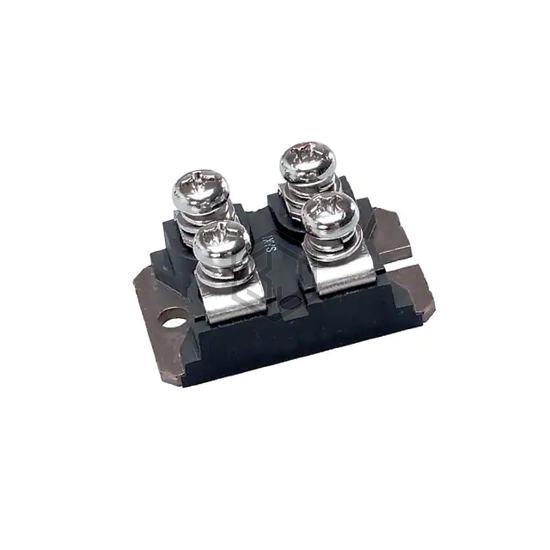

IGBT MODULE DISC IGBT SOT227B
IXXN340N65B4 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT MODULE DISC IGBT SOT227B. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-227-4, miniBLOC, current - collector (ic) (max) 520 A.
In Stock: 4,807
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | PT |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector (Ic) (Max) | 520 A |
| Current - Collector Pulsed (Icm) | 1200 A |
| Vce(on) (Max) @ Vge, Ic | 1.7V @ 15V, 160A |
| Power - Max | 1500 W |
| Switching Energy | 4.4mJ (on), 2.2mJ (off) |
| Input Type | Standard |
| Gate Charge | 553 nC |
| Td (on/off) @ 25°C | 62ns/245ns |
| Test Condition | 400V, 100A, 1Ohm, 15V |
| Reverse Recovery Time (trr) | 65 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | SOT-227-4, miniBLOC |
| Supplier Device Package | SOT-227B |
Submit your RFQ for IXXN340N65B4 and get a quote within 24 hours.
