IGBT 600V 170A 695W TO264

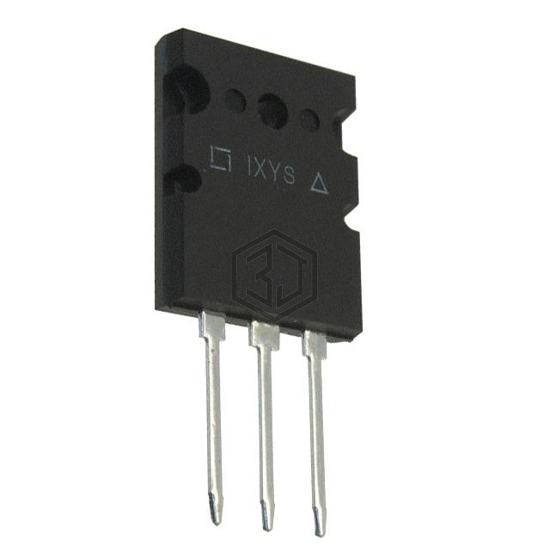

IXXK100N60C3H1 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 600V 170A 695W TO264. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-264-3, TO-264AA Variation, current - collector (ic) (max) 170 A.
In Stock: 5,207
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | PT |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 170 A |
| Current - Collector Pulsed (Icm) | 340 A |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 70A |
| Power - Max | 695 W |
| Switching Energy | 2mJ (on), 950µJ (off) |
| Input Type | Standard |
| Gate Charge | 150 nC |
| Td (on/off) @ 25°C | 30ns/90ns |
| Test Condition | 360V, 70A, 2Ohm, 15V |
| Reverse Recovery Time (trr) | 140 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-264-3, TO-264AA Variation |
| Supplier Device Package | TO-264 (IXXK) |
Submit your RFQ for IXXK100N60C3H1 and get a quote within 24 hours.
