IGBT

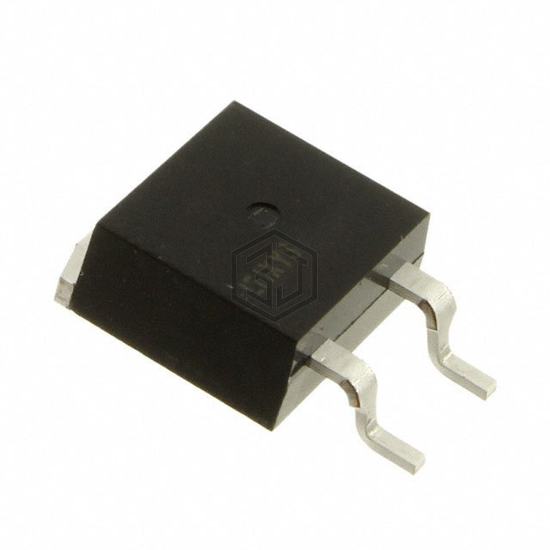

IXXA30N65C3HV is a Transistors - IGBTs - Single manufactured by IXYS. IGBT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB, current - collector (ic) (max) 52 A.
In Stock: 8,350
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector (Ic) (Max) | 52 A |
| Current - Collector Pulsed (Icm) | 113 A |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 24A |
| Power - Max | 230 W |
| Switching Energy | 500µJ (on), 450µJ (off) |
| Input Type | Standard |
| Gate Charge | 37 nC |
| Td (on/off) @ 25°C | 33ns/125ns |
| Test Condition | 400V, 24A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 33 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263HV |
Submit your RFQ for IXXA30N65C3HV and get a quote within 24 hours.
