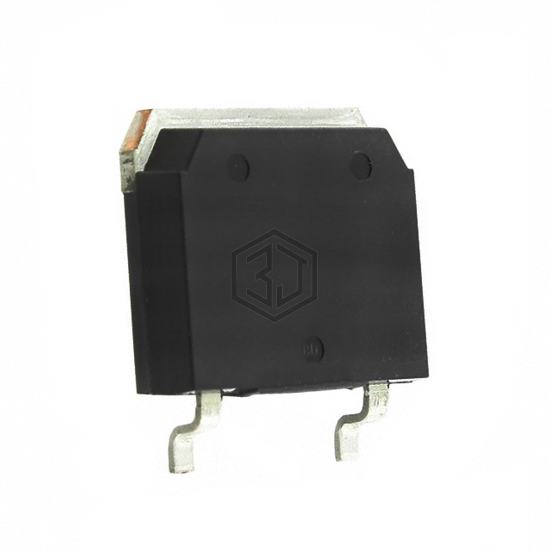

IGBT 1700V 6A 75W TO268
IXGT6N170AHV is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1700V 6A 75W TO268. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-268-3, D³Pak (2 Leads + Tab), TO-268AA, current - collector (ic) (max) 6 A.
In Stock: 3,698
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V |
| Current - Collector (Ic) (Max) | 6 A |
| Current - Collector Pulsed (Icm) | 14 A |
| Vce(on) (Max) @ Vge, Ic | 7V @ 15V, 3A |
| Power - Max | 75 W |
| Switching Energy | 590µJ (on), 180µJ (off) |
| Input Type | Standard |
| Gate Charge | 18.5 nC |
| Td (on/off) @ 25°C | 46ns/220ns |
| Test Condition | 850V, 6A, 33Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA |
| Supplier Device Package | TO-268HV |
