IGBT 1200V 300W TO268

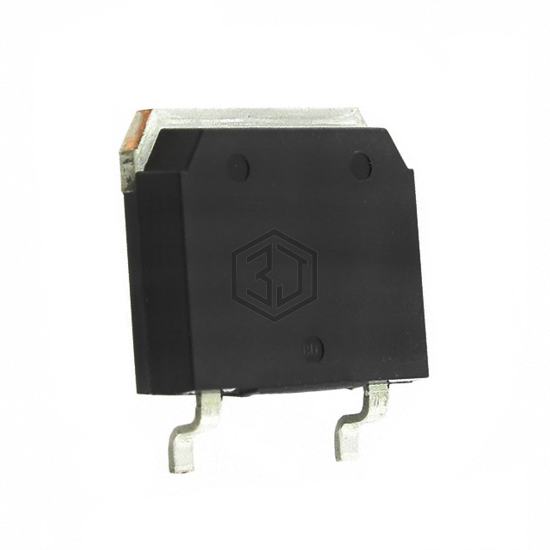

IXGT30N120B3D1 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1200V 300W TO268. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-268-3, D³Pak (2 Leads + Tab), TO-268AA, power - max 300 W.
In Stock: 5,511
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | PT |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | - |
| Current - Collector Pulsed (Icm) | 150 A |
| Vce(on) (Max) @ Vge, Ic | 3.5V @ 15V, 30A |
| Power - Max | 300 W |
| Switching Energy | 3.47mJ (on), 2.16mJ (off) |
| Input Type | Standard |
| Gate Charge | 87 nC |
| Td (on/off) @ 25°C | 16ns/127ns |
| Test Condition | 960V, 30A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | 100 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA |
| Supplier Device Package | TO-268AA |
Submit your RFQ for IXGT30N120B3D1 and get a quote within 24 hours.
