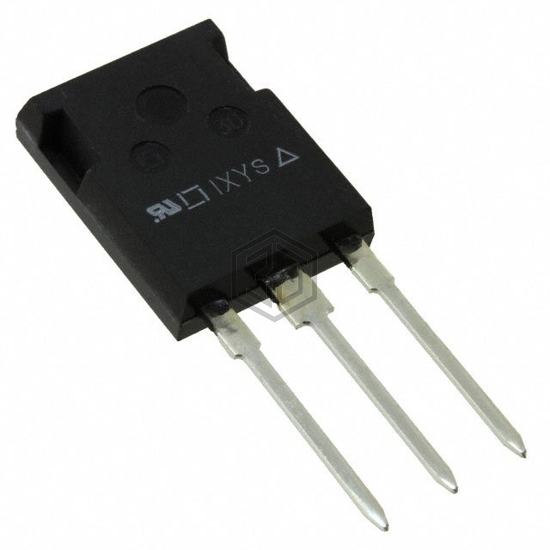

IGBT 1200V 48A 200W ISOPLUS247
IXGR24N120C3D1 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1200V 48A 200W ISOPLUS247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 48 A.
In Stock: 4,330
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | PT |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 48 A |
| Current - Collector Pulsed (Icm) | 96 A |
| Vce(on) (Max) @ Vge, Ic | 4.2V @ 15V, 20A |
| Power - Max | 200 W |
| Switching Energy | 1.37mJ (on), 470µJ (off) |
| Input Type | Standard |
| Gate Charge | 79 nC |
| Td (on/off) @ 25°C | 16ns/93ns |
| Test Condition | 600V, 20A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | 220 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | ISOPLUS247™ |
