IGBT

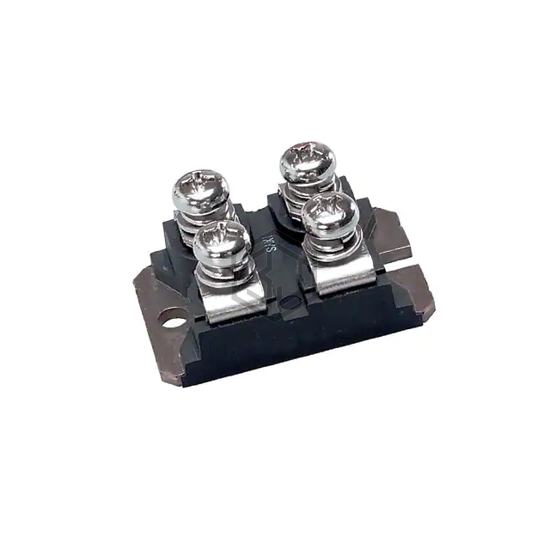

IXGN200N170 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-227-4, miniBLOC, current - collector (ic) (max) 280 A.
In Stock: 9,928
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V |
| Current - Collector (Ic) (Max) | 280 A |
| Current - Collector Pulsed (Icm) | 1050 A |
| Vce(on) (Max) @ Vge, Ic | 2.6V @ 15V, 100A |
| Power - Max | 1250 W |
| Switching Energy | 28mJ (on), 30mJ (off) |
| Input Type | Standard |
| Gate Charge | 540 nC |
| Td (on/off) @ 25°C | 37ns/320ns |
| Test Condition | 850V, 100A, 1Ohm, 15V |
| Reverse Recovery Time (trr) | 133 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | SOT-227-4, miniBLOC |
| Supplier Device Package | SOT-227B |
Submit your RFQ for IXGN200N170 and get a quote within 24 hours.
