IGBT 1200V 125A 460W TO264

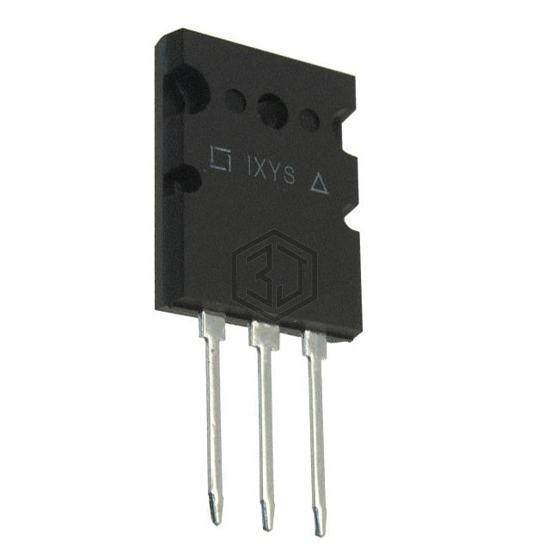

IXGK55N120A3H1 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1200V 125A 460W TO264. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-264-3, TO-264AA, current - collector (ic) (max) 125 A.
In Stock: 6,371
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | PT |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 125 A |
| Current - Collector Pulsed (Icm) | 400 A |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 55A |
| Power - Max | 460 W |
| Switching Energy | 5.1mJ (on), 13.3mJ (off) |
| Input Type | Standard |
| Gate Charge | 185 nC |
| Td (on/off) @ 25°C | 23ns/365ns |
| Test Condition | 960V, 55A, 3Ohm, 15V |
| Reverse Recovery Time (trr) | 200 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-264-3, TO-264AA |
| Supplier Device Package | TO-264 (IXGK) |
Submit your RFQ for IXGK55N120A3H1 and get a quote within 24 hours.
