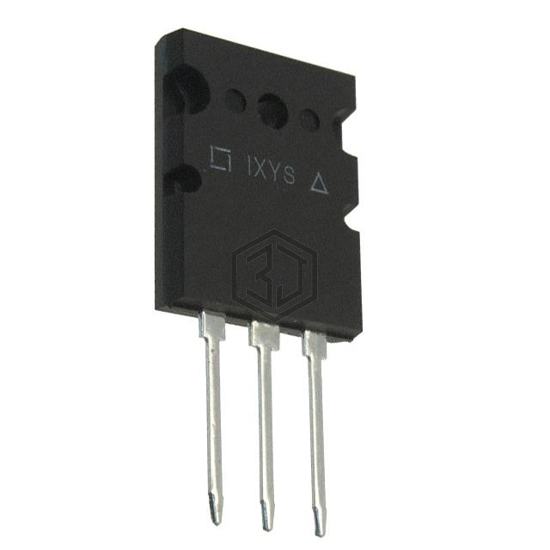

IGBT 1200V 240A 830W TO264
IXGK120N120A3 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1200V 240A 830W TO264. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-264-3, TO-264AA, current - collector (ic) (max) 240 A.
In Stock: 3,037
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | PT |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 240 A |
| Current - Collector Pulsed (Icm) | 600 A |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 100A |
| Power - Max | 830 W |
| Switching Energy | 10mJ (on), 33mJ (off) |
| Input Type | Standard |
| Gate Charge | 420 nC |
| Td (on/off) @ 25°C | 40ns/490ns |
| Test Condition | 960V, 100A, 1Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-264-3, TO-264AA |
| Supplier Device Package | TO-264 (IXGK) |
Submit your RFQ for IXGK120N120A3 and get a quote within 24 hours.
