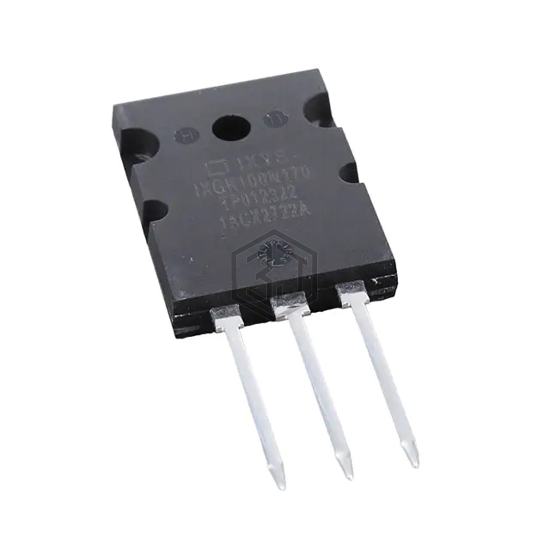

IGBT PT 1000V 120A TO-264
IXGK100N170 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT PT 1000V 120A TO-264. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C, package / case TO-264-3, TO-264AA, current - collector (ic) (max) 170 A.
In Stock: 641
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V |
| Current - Collector (Ic) (Max) | 170 A |
| Current - Collector Pulsed (Icm) | 600 A |
| Vce(on) (Max) @ Vge, Ic | 3V @ 15V, 100A |
| Power - Max | 830 W |
| Switching Energy | - |
| Input Type | Standard |
| Gate Charge | 425 nC |
| Td (on/off) @ 25°C | 35ns/285ns |
| Test Condition | 850V, 100A, 1Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 150°C |
| Mounting Type | Through Hole |
| Package / Case | TO-264-3, TO-264AA |
| Supplier Device Package | PLUS264™ |
Submit your RFQ for IXGK100N170 and get a quote within 24 hours.
