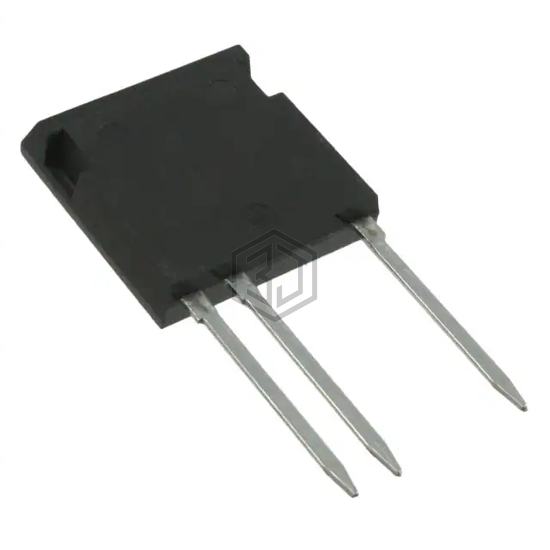

IGBT 2500V 23A 100W I4-PAK
IXGF20N250 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 2500V 23A 100W I4-PAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case i4-Pac™-5 (3 Leads), current - collector (ic) (max) 23 A.
In Stock: 3,237
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 2500 V |
| Current - Collector (Ic) (Max) | 23 A |
| Current - Collector Pulsed (Icm) | 105 A |
| Vce(on) (Max) @ Vge, Ic | 3.1V @ 15V, 20A |
| Power - Max | 100 W |
| Switching Energy | - |
| Input Type | Standard |
| Gate Charge | 53 nC |
| Td (on/off) @ 25°C | - |
| Test Condition | - |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | i4-Pac™-5 (3 Leads) |
| Supplier Device Package | ISOPLUS i4-PAC™ |
Submit your RFQ for IXGF20N250 and get a quote within 24 hours.
