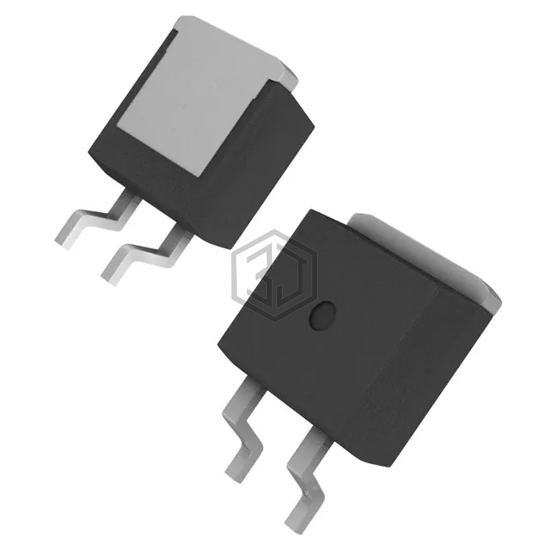

IGBT 1200V 36A 180W TO263
IXGA20N120B3 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1200V 36A 180W TO263. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB, current - collector (ic) (max) 36 A.
In Stock: 1,896
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | PT |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 36 A |
| Current - Collector Pulsed (Icm) | 80 A |
| Vce(on) (Max) @ Vge, Ic | 3.1V @ 15V, 16A |
| Power - Max | 180 W |
| Switching Energy | 920µJ (on), 560µJ (off) |
| Input Type | Standard |
| Gate Charge | 51 nC |
| Td (on/off) @ 25°C | 16ns/150ns |
| Test Condition | 600V, 16A, 15Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263AA |
Submit your RFQ for IXGA20N120B3 and get a quote within 24 hours.
