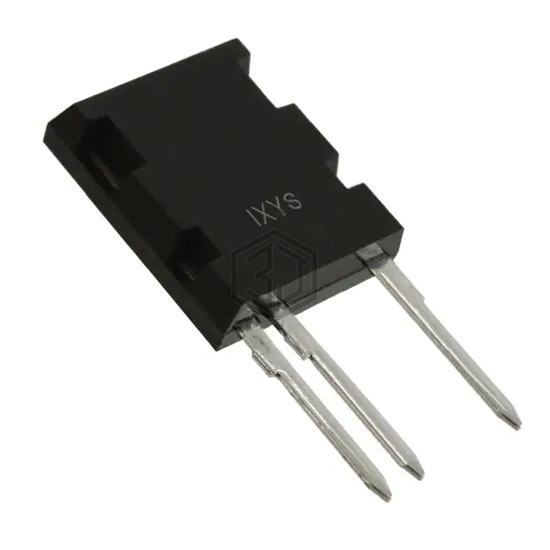

IGBT 4000V 90A 380W ISOPLUSI5
IXEL40N400 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 4000V 90A 380W ISOPLUSI5. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case ISOPLUSi5-Pak™, current - collector (ic) (max) 90 A.
In Stock: 194
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 4000 V |
| Current - Collector (Ic) (Max) | 90 A |
| Current - Collector Pulsed (Icm) | 400 A |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 40A |
| Power - Max | 380 W |
| Switching Energy | 55mJ (on), 165mJ (off) |
| Input Type | Standard |
| Gate Charge | 275 nC |
| Td (on/off) @ 25°C | 160ns/630ns |
| Test Condition | 2800V, 40A, 33Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | ISOPLUSi5-Pak™ |
| Supplier Device Package | ISOPLUSi5-Pak™ |
Submit your RFQ for IXEL40N400 and get a quote within 24 hours.
