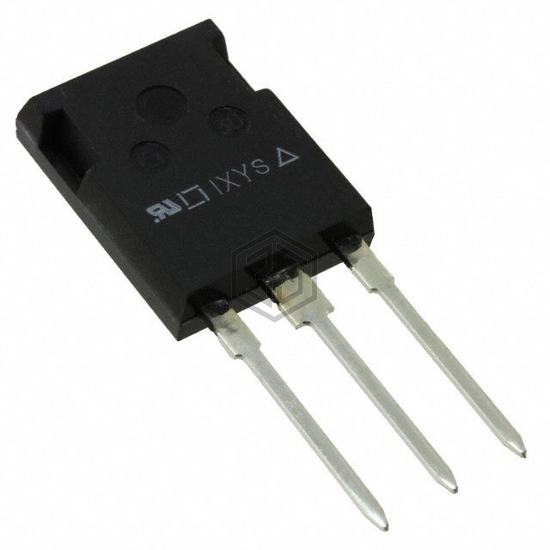

IGBT 1200V 50A 200W ISOPLUS247
IXDR30N120D1 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1200V 50A 200W ISOPLUS247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 50 A.
In Stock: 2,481
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | NPT |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 50 A |
| Current - Collector Pulsed (Icm) | 60 A |
| Vce(on) (Max) @ Vge, Ic | 2.9V @ 15V, 30A |
| Power - Max | 200 W |
| Switching Energy | 4.6mJ (on), 3.4mJ (off) |
| Input Type | Standard |
| Gate Charge | 120 nC |
| Td (on/off) @ 25°C | - |
| Test Condition | 600V, 30A, 47Ohm, 15V |
| Reverse Recovery Time (trr) | 40 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | ISOPLUS247™ |
Submit your RFQ for IXDR30N120D1 and get a quote within 24 hours.
