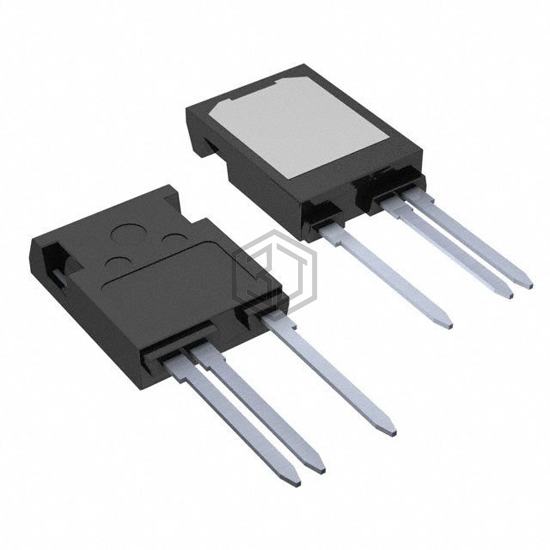

IGBT 3600V 125A 660W TO-247PLUS
IXBX50N360HV is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 3600V 125A 660W TO-247PLUS. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3 Variant, current - collector (ic) (max) 125 A.
In Stock: 7,617
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 3600 V |
| Current - Collector (Ic) (Max) | 125 A |
| Current - Collector Pulsed (Icm) | 420 A |
| Vce(on) (Max) @ Vge, Ic | 2.9V @ 15V, 50A |
| Power - Max | 660 W |
| Switching Energy | - |
| Input Type | Standard |
| Gate Charge | 210 nC |
| Td (on/off) @ 25°C | 46ns/205ns |
| Test Condition | 960V, 50A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | 1.7 µs |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 Variant |
| Supplier Device Package | TO-247PLUS-HV |
Submit your RFQ for IXBX50N360HV and get a quote within 24 hours.
