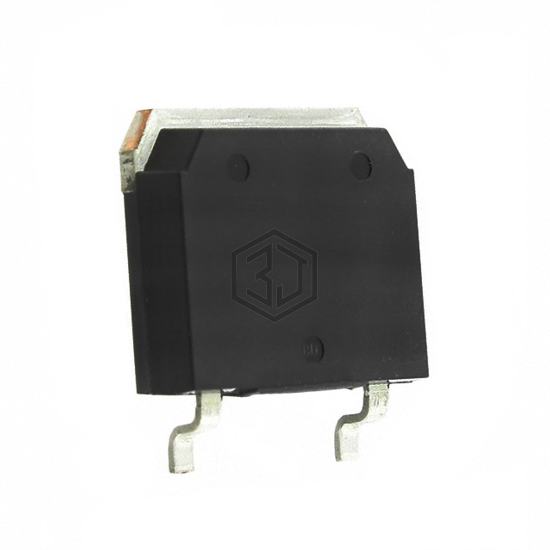

IGBT 3000V 30A 160W TO268
IXBT12N300HV is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 3000V 30A 160W TO268. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-268-3, D³Pak (2 Leads + Tab), TO-268AA, current - collector (ic) (max) 30 A.
In Stock: 9,186
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 3000 V |
| Current - Collector (Ic) (Max) | 30 A |
| Current - Collector Pulsed (Icm) | 100 A |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 12A |
| Power - Max | 160 W |
| Switching Energy | - |
| Input Type | Standard |
| Gate Charge | 62 nC |
| Td (on/off) @ 25°C | 64ns/180ns |
| Test Condition | 1250V, 12A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 1.4 µs |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA |
| Supplier Device Package | TO-268 |
Submit your RFQ for IXBT12N300HV and get a quote within 24 hours.
