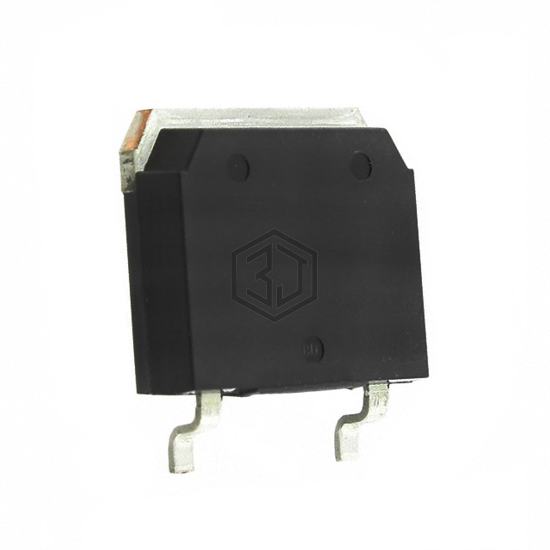

IGBT 1700V 20A 140W TO268
IXBT10N170 is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1700V 20A 140W TO268. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-268-3, D³Pak (2 Leads + Tab), TO-268AA, current - collector (ic) (max) 20 A.
In Stock: 1,529
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V |
| Current - Collector (Ic) (Max) | 20 A |
| Current - Collector Pulsed (Icm) | 40 A |
| Vce(on) (Max) @ Vge, Ic | 3.8V @ 15V, 10A |
| Power - Max | 140 W |
| Switching Energy | 6mJ (off) |
| Input Type | Standard |
| Gate Charge | 30 nC |
| Td (on/off) @ 25°C | 35ns/500ns |
| Test Condition | 1360V, 10A, 56Ohm, 15V |
| Reverse Recovery Time (trr) | 360 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-268-3, D³Pak (2 Leads + Tab), TO-268AA |
| Supplier Device Package | TO-268AA |
Submit your RFQ for IXBT10N170 and get a quote within 24 hours.
