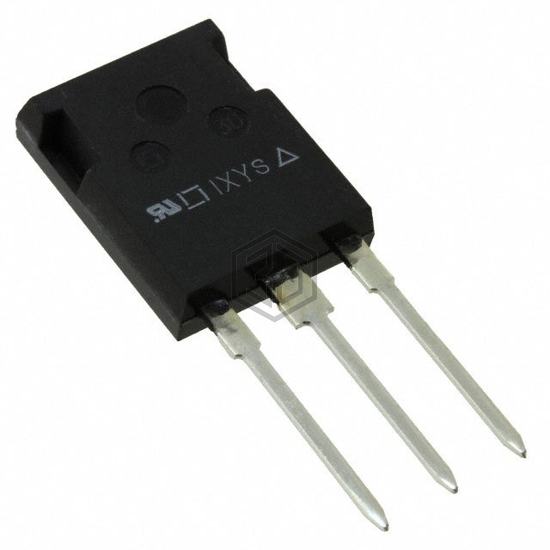

IGBT 1200V 84A 290W TO247
IXA55I1200HJ is a Transistors - IGBTs - Single manufactured by IXYS. IGBT 1200V 84A 290W TO247. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 84 A.
In Stock: 2,682
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | PT |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 84 A |
| Current - Collector Pulsed (Icm) | - |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 50A |
| Power - Max | 290 W |
| Switching Energy | 4.5mJ (on), 5.5mJ (off) |
| Input Type | Standard |
| Gate Charge | 190 nC |
| Td (on/off) @ 25°C | - |
| Test Condition | 600V, 50A, 15Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | ISOPLUS247™ |
Submit your RFQ for IXA55I1200HJ and get a quote within 24 hours.
