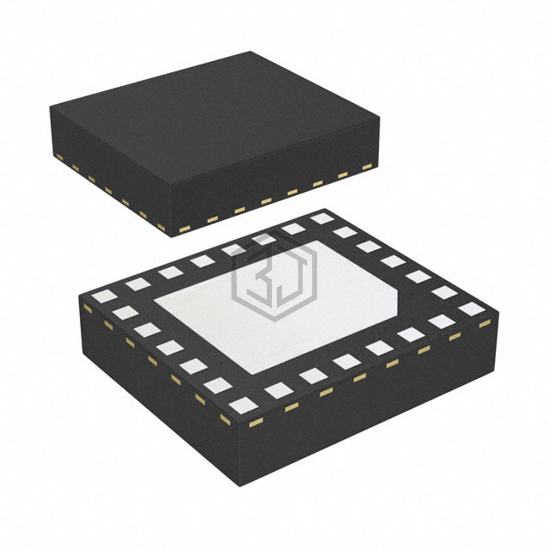

IC MOTOR DRIVER 250V 20A PQFN
IRSM808-204MHTR is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC MOTOR DRIVER 250V 20A PQFN. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), voltage - supply 13.5V ~ 16.5V, package / case 31-PowerVQFN.
In Stock: 3,561
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge |
| Applications | AC Motors |
| Interface | Logic |
| Load Type | Inductive |
| Technology | UMOS |
| Rds On (Typ) | 130mOhm |
| Current - Output / Channel | 20A |
| Current - Peak Output | - |
| Voltage - Supply | 13.5V ~ 16.5V |
| Voltage - Load | 200V (Max) |
| Operating Temperature | 150°C (TJ) |
| Features | Bootstrap Circuit |
| Fault Protection | UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 31-PowerVQFN |
| Supplier Device Package | 31-PQFN (8x9) |
