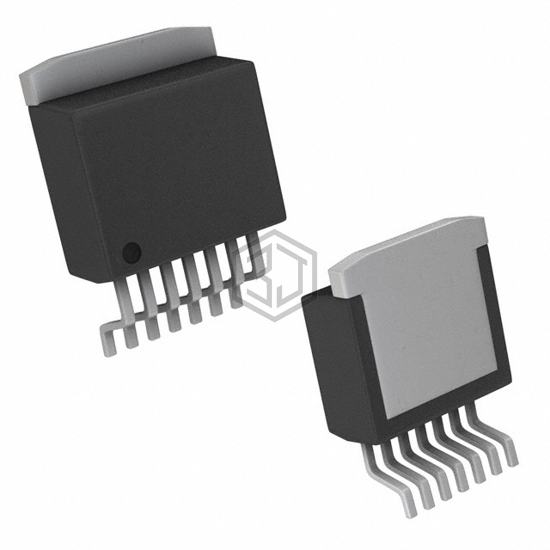

IC NOVALITHIC 1/2 BRIDGE TO263-7
BTS7930B is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC NOVALITHIC 1/2 BRIDGE TO263-7. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 5.5V ~ 28V, package / case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA.
In Stock: 1,636
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Half Bridge |
| Applications | DC Motors, General Purpose |
| Interface | Logic |
| Load Type | Inductive |
| Technology | DMOS |
| Rds On (Typ) | 18mOhm LS, 10mOhm HS |
| Current - Output / Channel | 20A |
| Current - Peak Output | 50A |
| Voltage - Supply | 5.5V ~ 28V |
| Voltage - Load | 5.5V ~ 28V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Latch Function, Slew Rate Controlled, Status Flag |
| Fault Protection | Current Limiting, Over Temperature, Short Circuit, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA |
| Supplier Device Package | PG-TO263-7-1 |
BTS7930B is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CSD97394Q4M | Texas Instruments | IC POWERSTAGE SYNC BUCK 8VSON | 93% | View |
| CSD95379Q3MT | Texas Instruments | IC SYNC BUCK NEXFET 10VSON | 93% | View |
| CSD97394Q4MT | Texas Instruments | IC POWERSTAGE SYNC BUCK 8VSON | 93% | View |
| CSD95379Q3M | Texas Instruments | IC SYNC BUCK NEXFET 10VSON | 93% | View |
| CSD97395Q4M | Texas Instruments | IC SYNC BUCK NEXFET 8VSON | 85% | View |
| CSD95375Q4M | Texas Instruments | IC SYNC BUCK NEXFET 8VSON | 85% | View |
Submit your RFQ for BTS7930B and get a quote within 24 hours.
