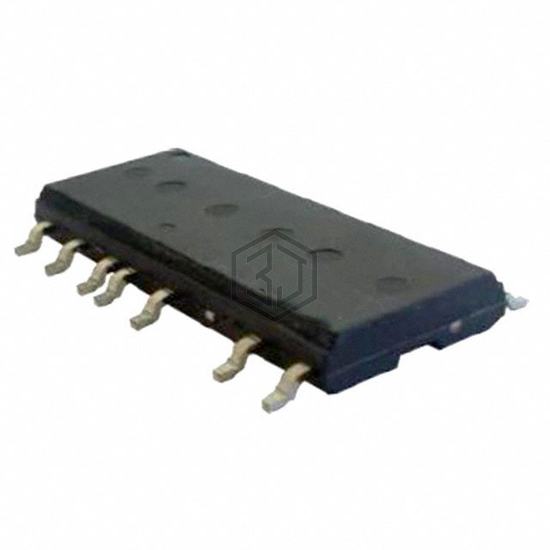

IC MOTOR DRIVER 500V 23SOP
IRSM515-025PA is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC MOTOR DRIVER 500V 23SOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 13.5V ~ 16.5V, package / case 32-PowerSMD Module, 23 Leads.
In Stock: 8,085
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Output Configuration | Half Bridge (3) |
| Applications | AC Motors |
| Interface | Logic |
| Load Type | Inductive |
| Technology | UMOS |
| Rds On (Typ) | 3Ohm |
| Current - Output / Channel | 1.5A |
| Current - Peak Output | 11A |
| Voltage - Supply | 13.5V ~ 16.5V |
| Voltage - Load | 400V (Max) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit |
| Fault Protection | UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 32-PowerSMD Module, 23 Leads |
| Supplier Device Package | 23-SOP |
IRSM515-025PA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| IRSM505-025PATR | Infineon Technologies | IC MOTOR DRIVER 500V 23SOP | 100% | View |
| IRSM505-025PA | Infineon Technologies | IC MOTOR DRIVER 500V 23SOP | 100% | View |
| IRSM505-025PATRAUMA1 | Infineon Technologies | CIPOS MICRO SOP23 | 100% | View |
| IRSM515-025PATRAUMA1 | Infineon Technologies | CIPOS MICRO SOP23 | 100% | View |
| STSPIN230 | STMicroelectronics | LOW VOLTAGE TRIPLE HALF-BRIDGE M | 52% | View |
| STSPIN233 | STMicroelectronics | LOW VOLTAGE TRIPLE HALF-BRIDGE M | 52% | View |
Submit your RFQ for IRSM515-025PA and get a quote within 24 hours.
