IC PWR PWM N-CH 1:1 DSO-20

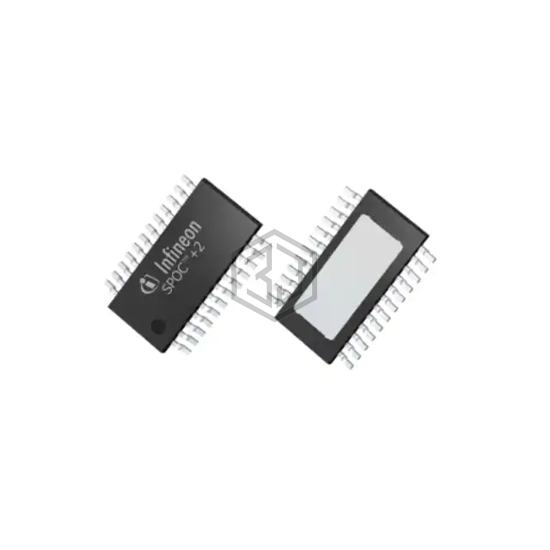

BTS730NT is a PMIC - Power Distribution Switches, Load Drivers manufactured by Infineon Technologies. IC PWR PWM N-CH 1:1 DSO-20. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 20-SOIC (0.295", 7.50mm Width).
In Stock: 8,152
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 5.9V ~ 16.9V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 3A |
| Rds On (Typ) | 70mOhm (Max) |
| Input Type | Non-Inverting |
| Features | Auto Restart |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-DSO-20 |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
BTS730NT is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BTS70802EPAXUMA1 | Infineon Technologies | IC PWR SWTCH N-CHAN 1:1 TSDSO-14 | 87% | View |
| BTT60502ERAXUMA1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 TDSO-14 | 85% | View |
| BTS50452EKAXUMA1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 DSO-14 | 82% | View |
| MC16XSD200FK | Freescale Semiconductor | HIGH-SIDE SWITCH, 36V, DUAL 16MO | 82% | View |
| BTS710404ESAXUMA1 | Infineon Technologies | IC PWR DRVR N-CHAN 1:1 TSDSO-24 | 75% | View |
| BTS710404ESEXUMA1 | Infineon Technologies | IC PWR DRVR N-CHAN 1:2 TSDSO-24 | 75% | View |
Submit your RFQ for BTS730NT and get a quote within 24 hours.
