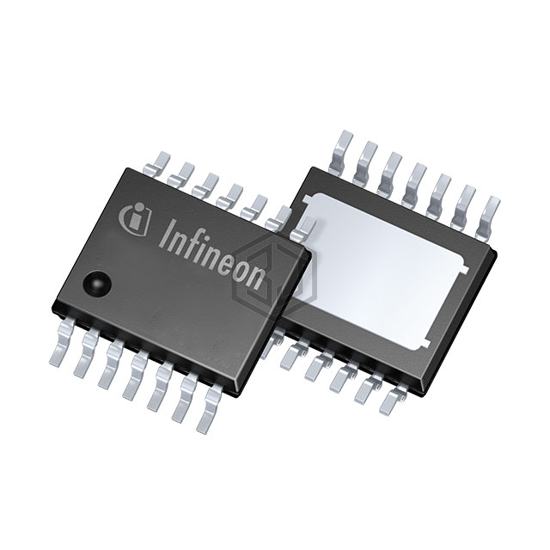

IC PWR SWTCH N-CHAN 1:1 TSDSO-14
BTS70802EPAXUMA1 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Infineon Technologies. IC PWR SWTCH N-CHAN 1:1 TSDSO-14. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 14-TSSOP (0.154", 3.90mm Width) Exposed Pad.
In Stock: 3,609
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 2 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 6V ~ 18V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 3A |
| Rds On (Typ) | 23.1mOhm |
| Input Type | Non-Inverting |
| Features | Slew Rate Controlled |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-TSDSO-14-22 |
| Package / Case | 14-TSSOP (0.154", 3.90mm Width) Exposed Pad |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BTS70802EPZXUMA1 | Infineon Technologies | PROFET PG-TSDSO-14 | 100% | View |
| BTT60502ERAXUMA1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 TDSO-14 | 97% | View |
| MC16XSD200FK | Freescale Semiconductor | HIGH-SIDE SWITCH, 36V, DUAL 16MO | 95% | View |
| BTS710404ESAXUMA1 | Infineon Technologies | IC PWR DRVR N-CHAN 1:1 TSDSO-24 | 88% | View |
| BTS710404ESEXUMA1 | Infineon Technologies | IC PWR DRVR N-CHAN 1:2 TSDSO-24 | 88% | View |
| BTS724GXUMA1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 DSO-20 | 86% | View |
Submit your RFQ for BTS70802EPAXUMA1 and get a quote within 24 hours.
