POWER STAGE DESIGN FOR DUAL COOL

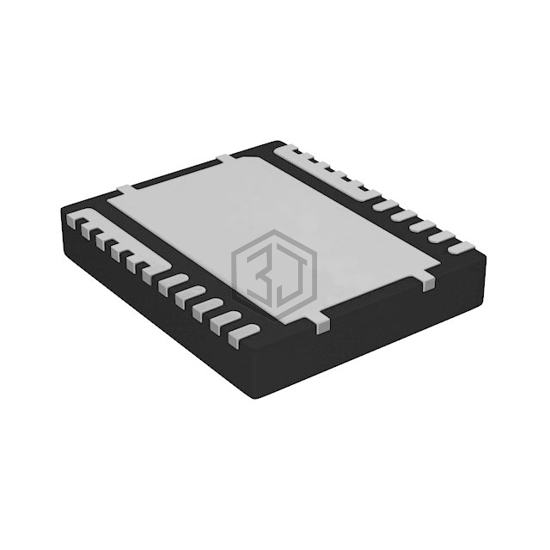

CSD95372BQ5MC is a PMIC - Full, Half-Bridge Drivers manufactured by Texas Instruments. POWER STAGE DESIGN FOR DUAL COOL. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), voltage - supply 4.5V ~ 5.5V, package / case 12-PowerTFDFN.
In Stock: 2,420
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Half Bridge |
| Applications | Synchronous Buck Converters |
| Interface | PWM |
| Load Type | Inductive |
| Technology | Power MOSFET |
| Rds On (Typ) | - |
| Current - Output / Channel | 60A |
| Current - Peak Output | 90A |
| Voltage - Supply | 4.5V ~ 5.5V |
| Voltage - Load | 4.5V ~ 16V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit, Status Flag |
| Fault Protection | Current Limiting, Over Temperature, Shoot-Through, Short Circuit, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 12-PowerTFDFN |
| Supplier Device Package | 12-VSON (5x6) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CSD95372BQ5MCT | Texas Instruments | IC SYNC BUCK NEXFET 12VSON | 100% | View |
| CSD95372BQ5MT | Texas Instruments | IC SYNC BUCK NEXFET 12SON | 100% | View |
| CSD95378BQ5MT | Texas Instruments | IC SYNC BUCK NEXFET 12LSON | 100% | View |
| CSD95372BQ5M | Texas Instruments | IC SYNC BUCK NEXFET 12SON | 100% | View |
| CSD95378BQ5MC | Texas Instruments | IC SYNC BUCK NEXFET 12SON | 100% | View |
| CSD95378BQ5M | Texas Instruments | IC SYNC BUCK NEXFET 12SON | 100% | View |
Submit your RFQ for CSD95372BQ5MC and get a quote within 24 hours.
