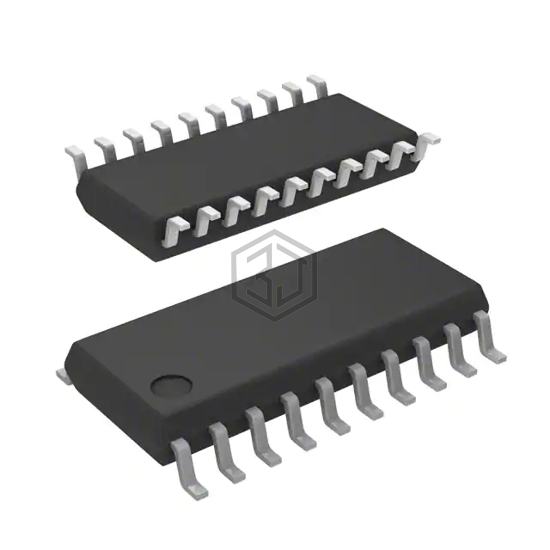

IC GATE DRVR HALF-BRIDGE DSO18-2
2ED020I12-F is a PMIC - Gate Drivers manufactured by Infineon Technologies. IC GATE DRVR HALF-BRIDGE DSO18-2. Key specifications: mounting type Surface Mount, voltage - supply 0V ~ 18V, package / case 18-SOIC (0.295", 7.50mm Width).
In Stock: 9,820
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 0V ~ 18V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 1A, 2A |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | 1200 V |
| Rise / Fall Time (Typ) | - |
| Operating Temperature | - |
| Mounting Type | Surface Mount |
| Package / Case | 18-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | PG-DSO-18-2 |
2ED020I12-F is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 2EDF7175FXUMA2 | Infineon Technologies | IC GATE DRVR HALF-BRIDG DSO16 | 100% | View |
| 2ED020I12FIXUMA1 | Infineon Technologies | IC GATE DRVR HALF-BRIDGE DSO18-2 | 100% | View |
| MIC4605-2YM-TR | Microchip Technology | IC GATE DRVR HALF-BRIDGE 8SOIC | 67% | View |
| DGD0590FU-7 | Diodes Incorporated | IC GATE DRV HALFBRD QFN3030-8 3K | 67% | View |
| LM25101CSDX/NOPB | Texas Instruments | IC GATE DRVR HALF-BRIDGE 10WSON | 67% | View |
| LM5101CMY/NOPB | Texas Instruments | IC GATE DRVR HALF-BRIDGE 8MSOP | 67% | View |
Submit your RFQ for 2ED020I12-F and get a quote within 24 hours.
