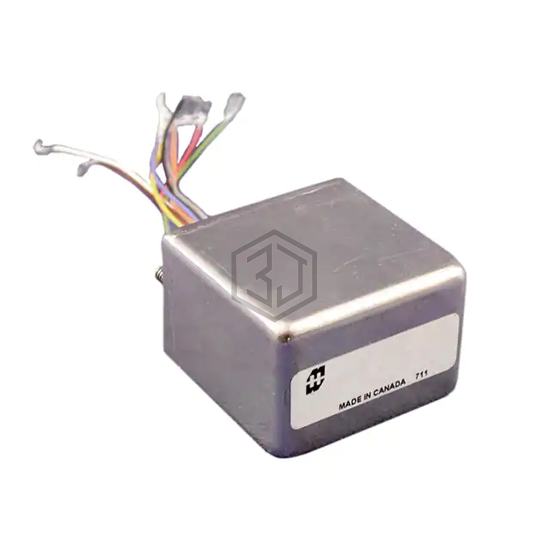

850EA - Hammond Manufacturing - Audio Transformers

850EA

Hammond Manufacturing

TRANSFORMER AUDIO BROADCAST

850EA is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER AUDIO BROADCAST. Key specifications: mounting type Chassis Mount, size / dimension 1.700" L x 1.200" W (43.18mm x 30.48mm), termination style Wire Leads, frequency range 20Hz ~ 20kHz.

In Stock: 2,331

Product Attributes

AttributeValue
Product StatusActive
Turns Ratio - Primary:Secondary-
Impedance - Primary (Ohms)200, 50/50
Impedance - Secondary (Ohms)600, 150/150
DC Resistance (DCR) - Primary27Ohm
DC Resistance (DCR) - Secondary68Ohm
Transformer Type-
Frequency Range20Hz ~ 20kHz
Frequency Response±0.5dB
Voltage - Isolation-
Insertion Loss1dB
Return Loss-
Power Level15dB
Operating Temperature-
Approval Agency-
Mounting TypeChassis Mount
Size / Dimension1.700" L x 1.200" W (43.18mm x 30.48mm)
Height - Seated (Max)1.650" (41.90mm)
Termination StyleWire Leads

Frequently Asked Questions

850EA is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER AUDIO BROADCAST

The mounting type of 850EA is Chassis Mount.

The size of 850EA is 1.700" L x 1.200" W (43.18mm x 30.48mm).

The termination type of 850EA is Wire Leads.
