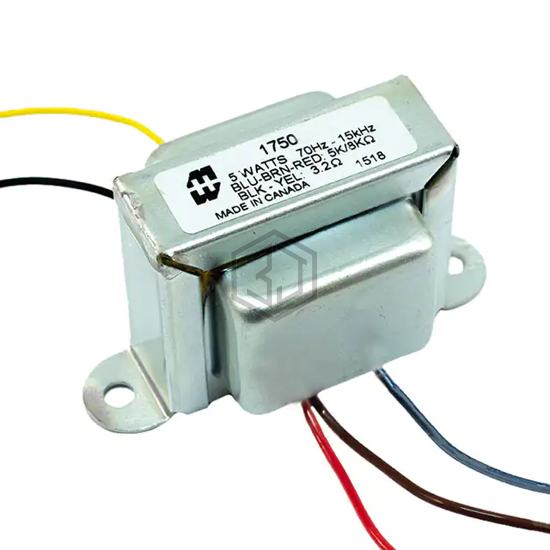

TRANSFORMER TUBE GUITAR AMP
1750C is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER TUBE GUITAR AMP. Key specifications: mounting type Chassis Mount, size / dimension 2.813" L x 1.560" W (71.45mm x 39.62mm), termination style Wire Leads, frequency range 70Hz ~ 15kHz.
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | 49.16:1 |
| Impedance - Primary (Ohms) | 5k, 8k |
| Impedance - Secondary (Ohms) | 3.2 |
| DC Resistance (DCR) - Primary | 314.2Ohm |
| DC Resistance (DCR) - Secondary | 295mOhm |
| Transformer Type | Single Ended Audiophile, Ultra-Linear - Tube Output |
| Frequency Range | 70Hz ~ 15kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | - |
| Insertion Loss | - |
| Return Loss | - |
| Power Level | 5W |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Chassis Mount |
| Size / Dimension | 2.813" L x 1.560" W (71.45mm x 39.62mm) |
| Height - Seated (Max) | 1.746" (44.35mm) |
| Termination Style | Wire Leads |
Submit your RFQ for 1750C and get a quote within 24 hours.
