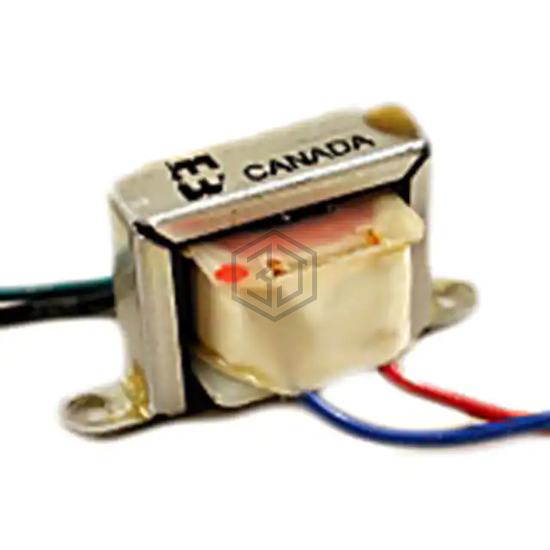

TRANSFORMER AUDIO 300CT/3.2 IMP
144D is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER AUDIO 300CT/3.2 IMP. Key specifications: mounting type Chassis Mount, size / dimension 1.000" L x 0.690" W (25.40mm x 17.53mm), termination style Wire Leads, frequency range 150Hz ~ 15kHz.
In Stock: 13
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | - |
| Impedance - Primary (Ohms) | 300CT |
| Impedance - Secondary (Ohms) | 3.2 |
| DC Resistance (DCR) - Primary | 15Ohm |
| DC Resistance (DCR) - Secondary | 330mOhm |
| Transformer Type | Economical Open Type |
| Frequency Range | 150Hz ~ 15kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | - |
| Insertion Loss | - |
| Return Loss | - |
| Power Level | 150mW |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Chassis Mount |
| Size / Dimension | 1.000" L x 0.690" W (25.40mm x 17.53mm) |
| Height - Seated (Max) | 0.690" (17.53mm) |
| Termination Style | Wire Leads |
Submit your RFQ for 144D and get a quote within 24 hours.
