TRANSFMR AUDIO 12/48 150/600 IMP

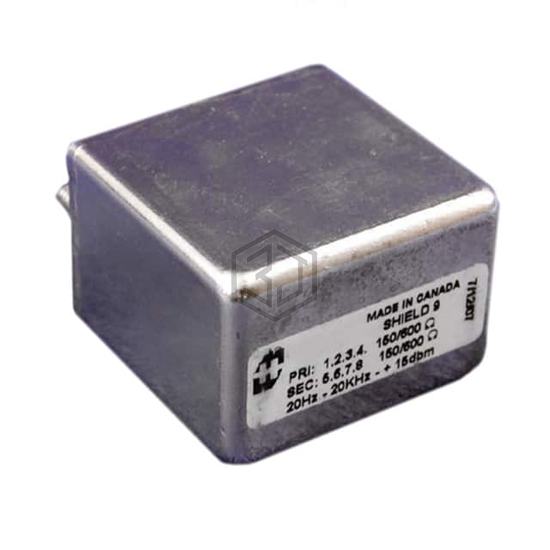

850C is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFMR AUDIO 12/48 150/600 IMP. Key specifications: mounting type Chassis Mount, size / dimension 1.700" L x 1.200" W (43.18mm x 30.48mm), termination style Solder Lug, frequency range 20Hz ~ 20kHz.
In Stock: 3,324
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Turns Ratio - Primary:Secondary | - |
| Impedance - Primary (Ohms) | 48, 12/12 |
| Impedance - Secondary (Ohms) | 600, 150/150 |
| DC Resistance (DCR) - Primary | 6Ohm |
| DC Resistance (DCR) - Secondary | 70Ohm |
| Transformer Type | Broadcast Quality |
| Frequency Range | 20Hz ~ 20kHz |
| Frequency Response | ±0.5dB |
| Voltage - Isolation | 250VAC @ 1 Sec |
| Insertion Loss | 1dB |
| Return Loss | - |
| Power Level | 15dB |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Chassis Mount |
| Size / Dimension | 1.700" L x 1.200" W (43.18mm x 30.48mm) |
| Height - Seated (Max) | 1.650" (41.91mm) |
| Termination Style | Solder Lug |
Submit your RFQ for 850C and get a quote within 24 hours.
