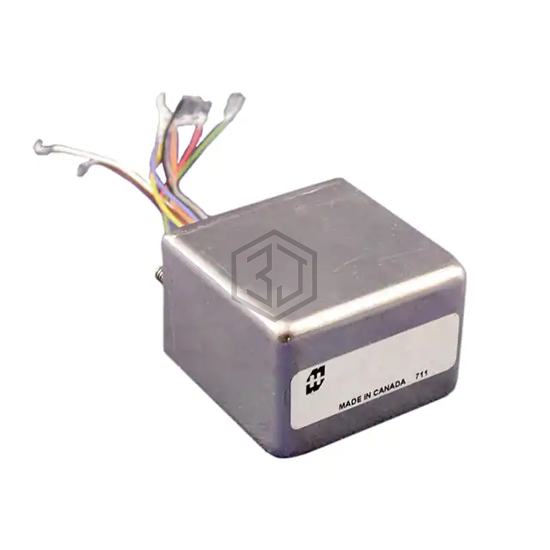

806A - Hammond Manufacturing - Audio Transformers

806A

Hammond Manufacturing

TRANSFORMER AUDIO B-CAST W/LDS

806A is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER AUDIO B-CAST W/LDS. Key specifications: mounting type Chassis Mount, size / dimension 1.750" L x 1.250" W (44.45mm x 31.75mm), termination style Wire Leads, frequency range 50Hz ~ 15kHz.

In Stock: 7,447

Product Attributes

AttributeValue
Product StatusActive
Turns Ratio - Primary:Secondary-
Impedance - Primary (Ohms)7.5, 30
Impedance - Secondary (Ohms)10k, 40k
DC Resistance (DCR) - Primary-
DC Resistance (DCR) - Secondary-
Transformer TypeBroadcast Quality
Frequency Range50Hz ~ 15kHz
Frequency Response±0.5dB
Voltage - Isolation-
Insertion Loss1dB
Return Loss-
Power Level15dB
Operating Temperature-
Approval Agency-
Mounting TypeChassis Mount
Size / Dimension1.750" L x 1.250" W (44.45mm x 31.75mm)
Height - Seated (Max)2.560" (65.02mm)
Termination StyleWire Leads

Frequently Asked Questions

806A is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER AUDIO B-CAST W/LDS

The mounting type of 806A is Chassis Mount.

The size of 806A is 1.750" L x 1.250" W (44.45mm x 31.75mm).

The termination type of 806A is Wire Leads.
