TRANS AUDIO 150/600 1.2K/4.8KIMP

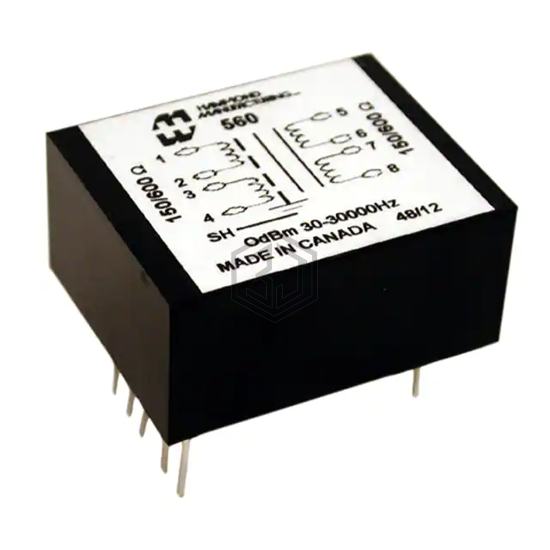

560J is a Audio Transformers manufactured by Hammond Manufacturing. TRANS AUDIO 150/600 1.2K/4.8KIMP. Key specifications: mounting type Through Hole, size / dimension 1.330" L x 1.640" W (33.78mm x 41.66mm), termination style PC Pin, frequency range 30Hz ~ 30kHz.
In Stock: 8,828
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | - |
| Impedance - Primary (Ohms) | 600, 150/150 |
| Impedance - Secondary (Ohms) | 4.8k, 1.2k/1.2k |
| DC Resistance (DCR) - Primary | - |
| DC Resistance (DCR) - Secondary | - |
| Transformer Type | Broadcast Quality |
| Frequency Range | 30Hz ~ 30kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | - |
| Insertion Loss | 1dB Max |
| Return Loss | - |
| Power Level | - |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.330" L x 1.640" W (33.78mm x 41.66mm) |
| Height - Seated (Max) | 0.850" (21.59mm) |
| Termination Style | PC Pin |
Submit your RFQ for 560J and get a quote within 24 hours.
