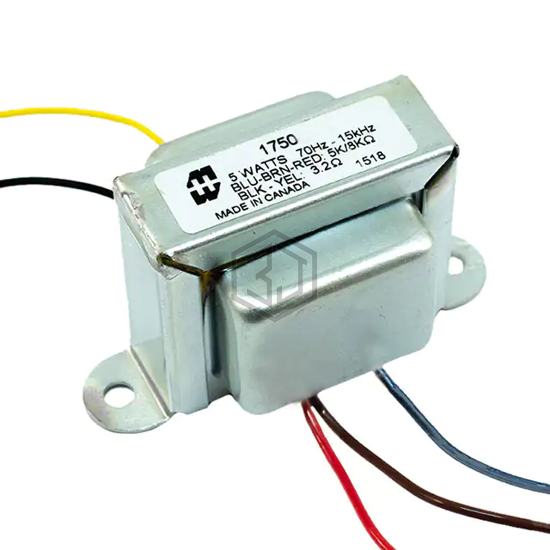

1750Y - Hammond Manufacturing - Audio Transformers

1750Y

Hammond Manufacturing

TRANSFORMER TUBE GUITAR AMP

1750Y is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER TUBE GUITAR AMP. Key specifications: mounting type Chassis Mount, size / dimension 2.500" L x 3.328" W (63.50mm x 84.53mm), termination style Wire Leads, frequency range 70Hz ~ 15kHz.

In Stock: 1

Product Attributes

AttributeValue
Product StatusActive
Turns Ratio - Primary:Secondary27.87:1
Impedance - Primary (Ohms)6.2kCT
Impedance - Secondary (Ohms)8
DC Resistance (DCR) - Primary289Ohm
DC Resistance (DCR) - Secondary480mOhm
Transformer TypePush-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range70Hz ~ 15kHz
Frequency Response±1dB
Voltage - Isolation-
Insertion Loss-
Return Loss-
Power Level15W
Operating Temperature-
Approval Agency-
Mounting TypeChassis Mount
Size / Dimension2.500" L x 3.328" W (63.50mm x 84.53mm)
Height - Seated (Max)3.123" (79.32mm)
Termination StyleWire Leads

Frequently Asked Questions

1750Y is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER TUBE GUITAR AMP

The mounting type of 1750Y is Chassis Mount.

The size of 1750Y is 2.500" L x 3.328" W (63.50mm x 84.53mm).

The termination type of 1750Y is Wire Leads.
