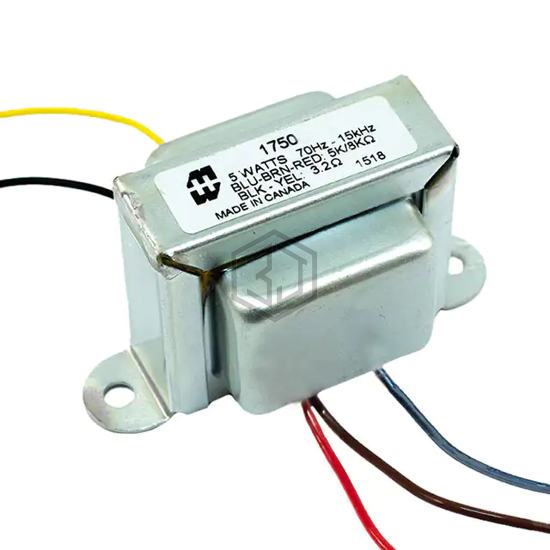

1750X - Hammond Manufacturing - Audio Transformers

1750X

Hammond Manufacturing

TRANSFORMER TUBE GUITAR AMP

1750X is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER TUBE GUITAR AMP. Key specifications: mounting type Chassis Mount, size / dimension 3.786" L x 4.049" W (96.16mm x 102.84mm), termination style Solder Lug, frequency range 50Hz ~ 12kHz.

In Stock: 1

Product Attributes

AttributeValue
Product StatusActive
Turns Ratio - Primary:Secondary10.14:1
Impedance - Primary (Ohms)2kCT
Impedance - Secondary (Ohms)2, 4, 8, 16
DC Resistance (DCR) - Primary5.03Ohm, 12.3Ohm, 7.16Ohm
DC Resistance (DCR) - Secondary20mOhm, 30mOhm, 50mOhm
Transformer TypePush-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range50Hz ~ 12kHz
Frequency Response±1dB
Voltage - Isolation-
Insertion Loss-
Return Loss-
Power Level100W
Operating Temperature-
Approval Agency-
Mounting TypeChassis Mount
Size / Dimension3.786" L x 4.049" W (96.16mm x 102.84mm)
Height - Seated (Max)3.238" (85.25mm)
Termination StyleSolder Lug

Frequently Asked Questions

1750X is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER TUBE GUITAR AMP

The mounting type of 1750X is Chassis Mount.

The size of 1750X is 3.786" L x 4.049" W (96.16mm x 102.84mm).

The termination type of 1750X is Solder Lug.
