TRANSFORMER TUBE GUITAR AMP

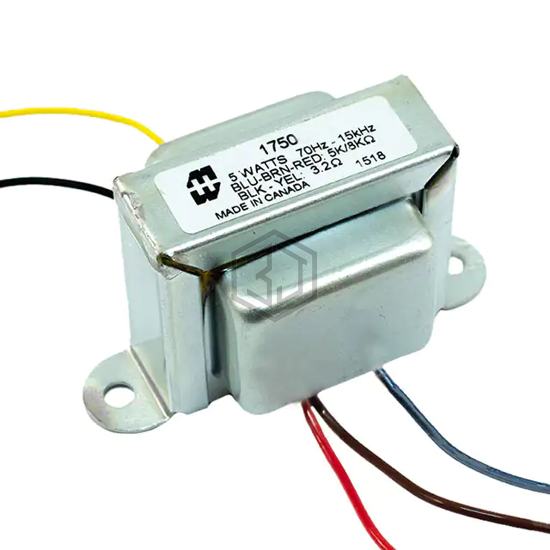

1750W is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER TUBE GUITAR AMP. Key specifications: mounting type Chassis Mount, size / dimension 4.063" L x 3.450" W (103.20mm x 87.63mm), termination style Wire Leads, frequency range 70Hz ~ 15kHz.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | 22.35:1 |
| Impedance - Primary (Ohms) | 2kCT |
| Impedance - Secondary (Ohms) | 4 |
| DC Resistance (DCR) - Primary | 11.4Ohm |
| DC Resistance (DCR) - Secondary | 100mOhm |
| Transformer Type | Push-Pull Audiophile, Ultra-Linear - Tube Output |
| Frequency Range | 70Hz ~ 15kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | - |
| Insertion Loss | - |
| Return Loss | - |
| Power Level | 100W |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.063" L x 3.450" W (103.20mm x 87.63mm) |
| Height - Seated (Max) | 3.563" (90.50mm) |
| Termination Style | Wire Leads |
Submit your RFQ for 1750W and get a quote within 24 hours.
