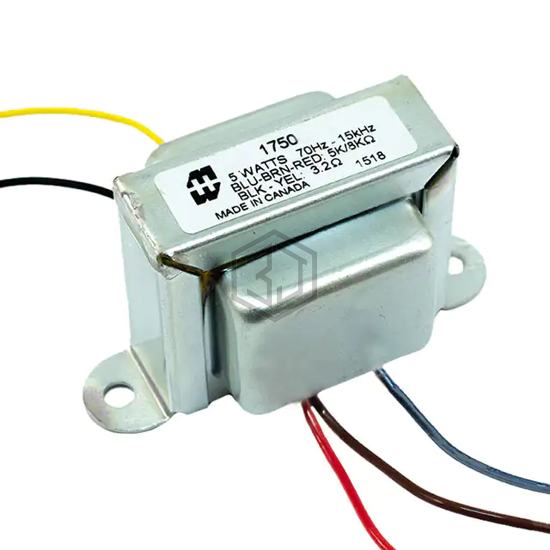

1750V - Hammond Manufacturing - Audio Transformers

1750V

Hammond Manufacturing

TRANSFORMER TUBE GUITAR AMP

1750V is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER TUBE GUITAR AMP. Key specifications: mounting type Chassis Mount, size / dimension 3.125" L x 3.325" W (79.38mm x 84.46mm), termination style Wire Leads, frequency range 70Hz ~ 15kHz.

In Stock: 1

Product Attributes

AttributeValue
Product StatusActive
Turns Ratio - Primary:Secondary15.93:1
Impedance - Primary (Ohms)4kCT
Impedance - Secondary (Ohms)8, 16
DC Resistance (DCR) - Primary138Ohm
DC Resistance (DCR) - Secondary720mOhm
Transformer TypePush-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range70Hz ~ 15kHz
Frequency Response±1dB
Voltage - Isolation-
Insertion Loss-
Return Loss-
Power Level30W
Operating Temperature-
Approval Agency-
Mounting TypeChassis Mount
Size / Dimension3.125" L x 3.325" W (79.38mm x 84.46mm)
Height - Seated (Max)3.843" (97.61mm)
Termination StyleWire Leads

Frequently Asked Questions

1750V is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER TUBE GUITAR AMP

The mounting type of 1750V is Chassis Mount.

The size of 1750V is 3.125" L x 3.325" W (79.38mm x 84.46mm).

The termination type of 1750V is Wire Leads.
