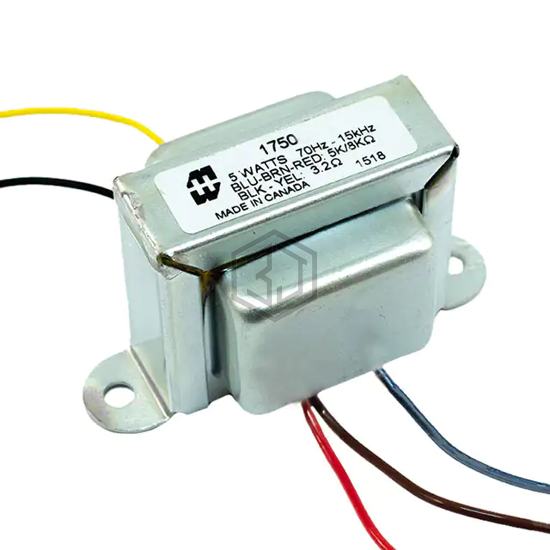

1750U - Hammond Manufacturing - Audio Transformers

1750U

Hammond Manufacturing

TRANSFORMER TUBE GUITAR AMP

1750U is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER TUBE GUITAR AMP. Key specifications: mounting type Chassis Mount, size / dimension 3.750" L x 4.020" W (95.25mm x 102.11mm), termination style Wire Leads, frequency range 50Hz ~ 12kHz.

In Stock: 3,577

Product Attributes

AttributeValue
Product StatusActive
Turns Ratio - Primary:Secondary10.40:1
Impedance - Primary (Ohms)1.7kCT
Impedance - Secondary (Ohms)4, 8, 16
DC Resistance (DCR) - Primary15.36Ohm, 16.56Ohm
DC Resistance (DCR) - Secondary100mOhm, 120mOhm
Transformer TypePush-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range50Hz ~ 12kHz
Frequency Response±1dB
Voltage - Isolation-
Insertion Loss-
Return Loss-
Power Level100W
Operating Temperature-
Approval Agency-
Mounting TypeChassis Mount
Size / Dimension3.750" L x 4.020" W (95.25mm x 102.11mm)
Height - Seated (Max)4.600" (116.84mm)
Termination StyleWire Leads

Frequently Asked Questions

1750U is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER TUBE GUITAR AMP

The mounting type of 1750U is Chassis Mount.

The size of 1750U is 3.750" L x 4.020" W (95.25mm x 102.11mm).

The termination type of 1750U is Wire Leads.
