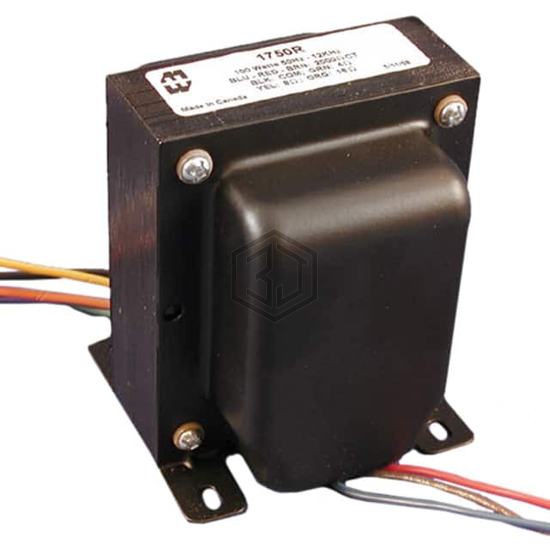

1750R - Hammond Manufacturing - Audio Transformers

1750R

Hammond Manufacturing

TRANSFORMER TUBE GUITAR AMP

1750R is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER TUBE GUITAR AMP. Key specifications: mounting type Chassis Mount, size / dimension 3.750" L x 3.936" W (95.25mm x 99.97mm), termination style Wire Leads, frequency range 50Hz ~ 12kHz.

In Stock: 1

Product Attributes

AttributeValue
Product StatusActive
Turns Ratio - Primary:Secondary11.11:1
Impedance - Primary (Ohms)2kCT
Impedance - Secondary (Ohms)4, 8, 16
DC Resistance (DCR) - Primary25.72Ohm, 12.86Ohm
DC Resistance (DCR) - Secondary222mOhm
Transformer TypePush-Pull Audiophile, Ultra-Linear - Tube Output
Frequency Range50Hz ~ 12kHz
Frequency Response±1dB
Voltage - Isolation-
Insertion Loss-
Return Loss-
Power Level100W
Operating Temperature-
Approval Agency-
Mounting TypeChassis Mount
Size / Dimension3.750" L x 3.936" W (95.25mm x 99.97mm)
Height - Seated (Max)4.623" (117.42mm)
Termination StyleWire Leads

Frequently Asked Questions

1750R is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER TUBE GUITAR AMP

The mounting type of 1750R is Chassis Mount.

The size of 1750R is 3.750" L x 3.936" W (95.25mm x 99.97mm).

The termination type of 1750R is Wire Leads.
