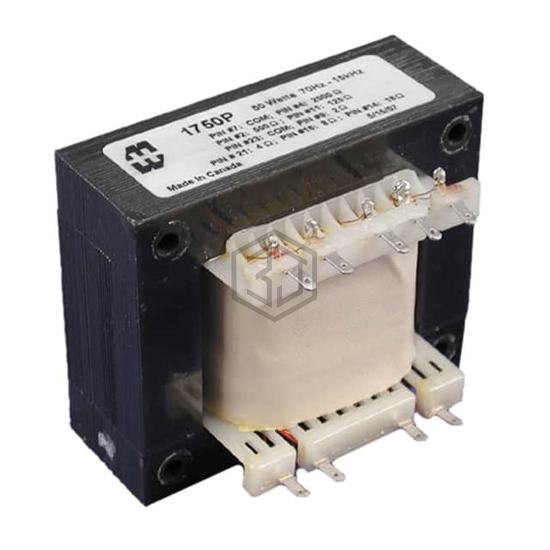

TRANSFORMER TUBE GUITAR AMP
1750P is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER TUBE GUITAR AMP. Key specifications: mounting type Chassis Mount, size / dimension 3.750" L x 3.090" W (95.25mm x 78.49mm), termination style Solder Lug, frequency range 50Hz ~ 12kHz.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | 14.24:1 |
| Impedance - Primary (Ohms) | 3.4kCT |
| Impedance - Secondary (Ohms) | 2, 4, 8, 16 |
| DC Resistance (DCR) - Primary | 41.3Ohm, 40.5Ohm, 81.8Ohm |
| DC Resistance (DCR) - Secondary | 120mOhm, 150mOhm, 210mOhm |
| Transformer Type | Push-Pull Audiophile, Ultra-Linear - Tube Output |
| Frequency Range | 50Hz ~ 12kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | - |
| Insertion Loss | - |
| Return Loss | - |
| Power Level | 50W |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.750" L x 3.090" W (95.25mm x 78.49mm) |
| Height - Seated (Max) | 3.188" (80.98mm) |
| Termination Style | Solder Lug |
Submit your RFQ for 1750P and get a quote within 24 hours.
