TRANSFORMER TUBE GUITAR AMP

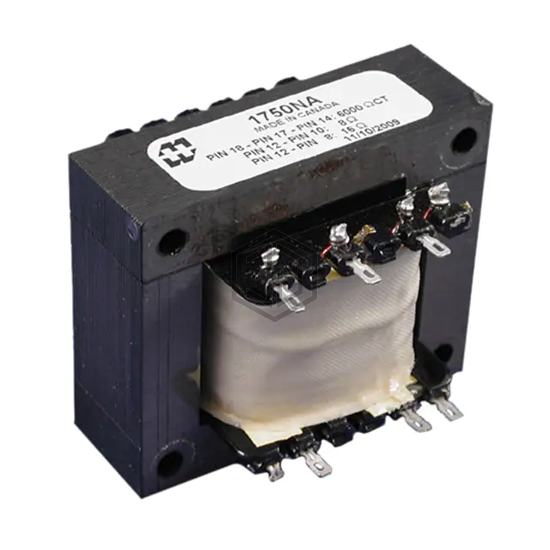

1750NA is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER TUBE GUITAR AMP. Key specifications: mounting type Chassis Mount, size / dimension 3.000" L x 2.465" W (76.20mm x 62.61mm), termination style Solder Lug, frequency range 50Hz ~ 12kHz.
In Stock: 1,592
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | - |
| Impedance - Primary (Ohms) | 6kCT |
| Impedance - Secondary (Ohms) | 8, 16 |
| DC Resistance (DCR) - Primary | 73.2Ohm, 74.41Ohm, 147.4Ohm |
| DC Resistance (DCR) - Secondary | 300mOhm, 580mOhm, 820mOhm |
| Transformer Type | - |
| Frequency Range | 50Hz ~ 12kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | 2500V @ 1 Second |
| Insertion Loss | - |
| Return Loss | - |
| Power Level | 30W |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.000" L x 2.465" W (76.20mm x 62.61mm) |
| Height - Seated (Max) | 2.525" (64.14mm) |
| Termination Style | Solder Lug |
Submit your RFQ for 1750NA and get a quote within 24 hours.
