TRANSFORMER TUBE GUITAR AMP

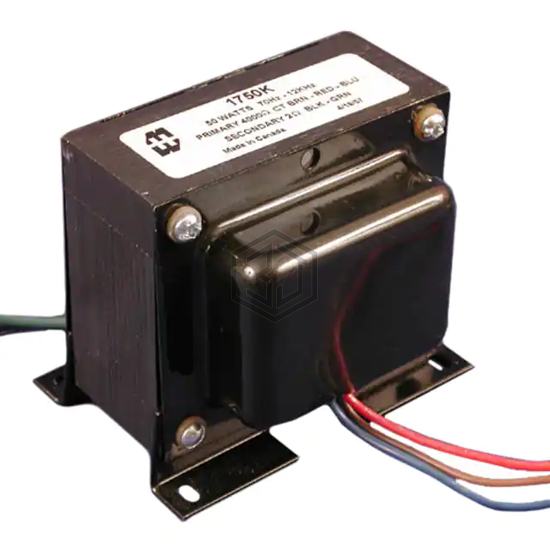

1750K is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER TUBE GUITAR AMP. Key specifications: mounting type Chassis Mount, size / dimension 4.063" L x 3.125" W (103.20mm x 79.38mm), termination style Wire Leads, frequency range 70Hz ~ 15kHz.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | 44.67:1 |
| Impedance - Primary (Ohms) | 4kCT |
| Impedance - Secondary (Ohms) | 2 |
| DC Resistance (DCR) - Primary | 43.16Ohm, 46.28Ohm |
| DC Resistance (DCR) - Secondary | 180mOhm |
| Transformer Type | Push-Pull Audiophile, Ultra-Linear - Tube Output |
| Frequency Range | 70Hz ~ 15kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | - |
| Insertion Loss | - |
| Return Loss | - |
| Power Level | 50W |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.063" L x 3.125" W (103.20mm x 79.38mm) |
| Height - Seated (Max) | 3.516" (89.31mm) |
| Termination Style | Wire Leads |
Submit your RFQ for 1750K and get a quote within 24 hours.
