TRANSFORMER TUBE GUITAR AMP

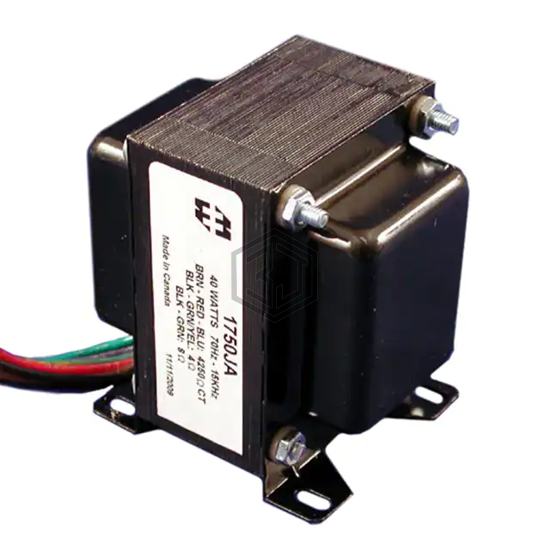

1750JA is a Audio Transformers manufactured by Hammond Manufacturing. TRANSFORMER TUBE GUITAR AMP. Key specifications: mounting type Chassis Mount, size / dimension 2.500" L x 3.150" W (63.50mm x 80.01mm), termination style Wire Leads, frequency range 70Hz ~ 15kHz.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | - |
| Impedance - Primary (Ohms) | 4.25kCT |
| Impedance - Secondary (Ohms) | 4, 8 |
| DC Resistance (DCR) - Primary | 82Ohm, 108.3Ohm |
| DC Resistance (DCR) - Secondary | 253mOhm, 462mOhm |
| Transformer Type | - |
| Frequency Range | 70Hz ~ 15kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | 2000V @ 1 Second |
| Insertion Loss | - |
| Return Loss | - |
| Power Level | 40W |
| Operating Temperature | - |
| Approval Agency | - |
| Mounting Type | Chassis Mount |
| Size / Dimension | 2.500" L x 3.150" W (63.50mm x 80.01mm) |
| Height - Seated (Max) | 3.319" (84.30mm) |
| Termination Style | Wire Leads |
Submit your RFQ for 1750JA and get a quote within 24 hours.
